Specifications

ModelCLW
Volume5t
ChassisEuro 4
PriceUS $26,800 / Piece
WhatsApp+86 13597839022
AddressXingguang 1st Road, Suizhou City, Hubei Province
DeliveryFactory pickup, door-to-door delivery, overseas shipping
ColorCustom paint and branding available

Free Quote WhatsApp

Product Details & Configuration

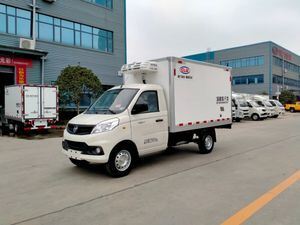

Cheng Liwei brand CLW5040XLCQL6 type refrigerated car

Product trademark	Cheng Liwei card
product name	chill car	product model	CLW5040XLCQL6
gross mass (Kg)	3495	Tank volume (m3)
Rated load mass (Kg)	1615	outline dimension (mm)	5070×1740×2490
curb weight (Kg)	1750	Goods Chamber Size (mm)	3120×1580×1560
Number of passengers (person)	2	Maximum saddle load mass (Kg)
Approach angle / departure angle of (°)	22/20	Front suspension / rear suspension (mm)	1075/1245
axle weight (Kg)	1785/2675	Top vehicle speed (Km/h)	110
remarks	Engine model DAM16KL, fuel consumption is 8.7L / 100km; cargo material: internal and external FRP, intermediate polyurethane insulation board, cargo thickness: 80mm.
[Chassis technical parameters]
Chassis model	BJ1031V5JV4-51	Chassis name	truck chassis
brand name	FOTON	manufacturing enterprise	Harbin Dongan Automobile Power Co., Ltd
number of axles	2	Number of tires	6
wheel base (mm)	2750
tyre size	175R14LT 8PR
Number of steel plate spring sheets	3/5	front gauge (mm)	1320
Fuel types	diesel oil	rear track (mm)	1280
Emission basis standard	The GB17691-2018 countries
engine type	Engine production enterprise	displacement (ml)	power (Kw)
DAM16KL State VI emits 120 horsepower	Harbin Dongan Automobile Power Co., Ltd	1597	90

Upper configuration: The inner and outer wall panels are made of high-quality domestic fiberglass, and the intermediate material is made of advanced insulation composite board. The thickness of the cabin is 80mm, and the door frame is 80mm. The bottom plate is covered with aluminum pattern board as a whole, and the edges of the cabin are thickened with aluminum alloy, stainless steel corners, stainless steel door locks, stainless steel door frames, stainless steel hinges, and energy-saving LED lighting inside the cabin. Optional -5 ° to -15 ° refrigeration units.
