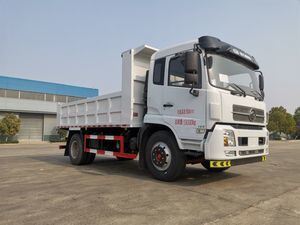

High-Quality Dongfeng 4X2 Sludge Transport Truck for Sludge Handling and Transport Tasks

Free Quote WhatsApp

Product Details & Configuration

Dongfeng Cargo Truck/4X2
Main technical parameters

Model		/4×2
(*)(mm) Overall dimension(lw*h)		8000×2500×3250
Wheel base(mm)		4500
G.V.W (kg)		14490
Complete vehicle kerb(kg)		6920
Max speed (km/h)		80
engine	() Model(emission standard)	B190 33,,,6, 6 cylinders in line,4 strokes, turbocharged cool, water cooling
	Capacity(L)	5.9/ 5.9/ Diesel oil
	Maximum power(Kw/rpm)	140/2500 (190hp)
	Maximum torque(Nm/rpm)	640/1500
	Emission standard	Euro III
clutch	model	¢395mm , Hydraulic control with air booster, pushing
gearbox	model	6, 1, 6 forward gears & 1 reverse ,synchronized
Brake system	service braker	, Automatically regulate brake gap, double-circuit pneumatic power brake system
	auxiliary braker	Engine exhaust brake
	Parking braker	Energy storage spring effect on rear wheels
Steering		Circulating ball power steering, hydraulic assisted
Vehicle frame		Straight Beam
Front axle		Elliot type, I beam section
Rear axle		Single reduction
Front over suspension rack		Leaf spring with shock absorber
Rear over suspension rack		Leaf spring
Tire		10.00R20
cab		,,, , Kingrun one and a half row cab ,forward control type , all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension , adjustable driver's seat, air conditioning system
Color		The photo only for reference and standard color is common paint and single color.
		5800×2400×600mm
