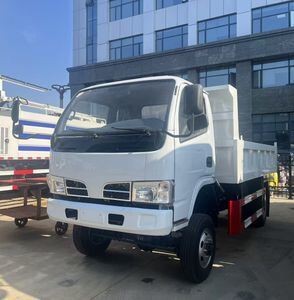

Cheap Dump Truck 4WD Dump Truck Price Small Dump Truck In Industrial Sectors

Free Quote WhatsApp

Product Details & Configuration

[Vehicle technical parameters]
Product trademark	Dongfeng brand	Announcement batch	386 (extended)
product name	lorry	product model	EQ1043S3CDF
gross mass (Kg)	4495	Tank volume (m3)
Rated load mass (Kg)	1800,1735	outline dimension (mm)	5995,5600×2200,2000×,2470,2200
curb weight (Kg)	2565	Goods Chamber Size (mm)	4200,3850×2100,1900×400,550
Rated passenger capacity (person)		Quasi-trailer total mass (Kg)
Number of passengers (person)	2,3	Maximum saddle load mass (Kg)
Approach angle / departure angle of (°)	24/13,20/14	Front suspension / rear suspension (mm)	1021/1666,1040/1610,1125/1562
axle weight (Kg)	1650/2845,1800/2695,1945/2550	Top vehicle speed (Km/h)	103,108
[Chassis technical parameters]
Chassis model	EQ1041S3CDF	Chassis name	truck chassis
brand name	Dongfeng brand	manufacturing enterprise	Dongfeng Motor Co., Ltd
number of axles	2	Number of tires	6
wheel base (mm)	3308,2950
tyre size	6.50R16LT 10PR,7.00R16LT 8PR,6.00R15LT 10PR
Number of steel plate spring sheets	6/6+5,5/7+3,	front gauge (mm)	1521,1613
Fuel types	diesel oil	rear track (mm)	1494,1586,1670,1650,1458,1630,1770
Emission basis standard	The GB17691-2018 countries
engine type	Engine production enterprise	displacement (ml)	power (Kw)
