Isuzu 4*2 Compressed Garbage Truck for Export
Specifications
- ModelCLW5070ZYSQ6
- Volume6001-10000L
- ChassisEurope VI
- PriceUS $25,000-35,000
- WhatsApp+86 13597839022
- AddressXingguang 1st Road, Suizhou City, Hubei Province
- DeliveryFactory pickup, door-to-door delivery, overseas shipping
- ColorCustom paint and branding available
Product Details & Configuration
High-performance compression garbage truck
The compressed garbage truck consists of a sealed garbage bin, a hydraulic system, and an operating system.
The whole vehicle is fully sealed,All the sewage in the process of self-compression, self-dumping and compression enters the sewage compartment, which completely solves the problem during the garbage transportation processSecondary pollutionThe problem avoids inconvenience to people. The key components are imported parts, which have the advantages of high pressure, good sealing, convenient operation, safety, etc. A variety of rear bucket flip mechanisms or garbage bin flip mechanisms are available.
Specification
Functional Description:
The 14-cubic-meter container is used for loading household waste and consists of a sealed trash bin, filler, pusher blade, hydraulic transmission system, and electrical control system. The fully enclosed vehicle utilizes integrated electro-hydraulic technology. Leveraging a combined mechanical, electrical, and hydraulic automatic control system, the bin, filler, and pusher blade utilize specialized devices to dump, crush, flatten, and lift waste, squeezing it into the vehicle compartment for compaction and unloading. Wastewater generated during the compression process flows into the wastewater compartment, eliminating secondary pollution during waste transportation. Users can choose from a variety of tipping mechanisms to suit different waste collection methods: standard iron bins (ZBT59003-88) (300L), plastic bins (240L), plastic bins (660L), and plastic bins (1100L). Optional tilting mechanisms include a triangular bucket, large floor-standing bin, and swing-arm bins. An optional pneumatic sealing cover is also available.
Key Configurations
1. The housing utilizes a sturdy frame structure welded from reinforced beams and high-strength steel plates.
2. The housing welds utilize a domestically pioneering robotic automated welding process.
3. Key components of the electrical and hydraulic systems utilize a Siemens PLC control system.
4. All cylinder seals are imported from the UK, using the HALLITE brand to ensure long cylinder life.

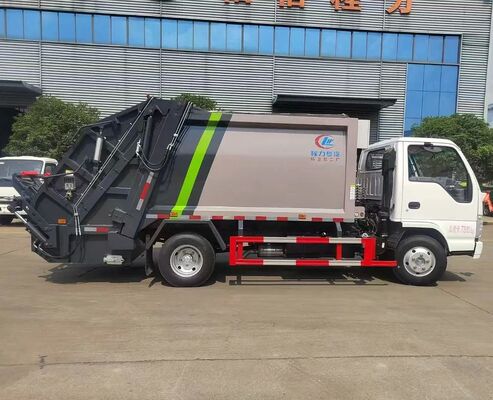

right elevation

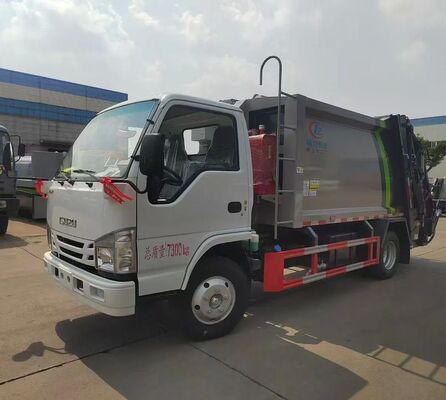

left elevation

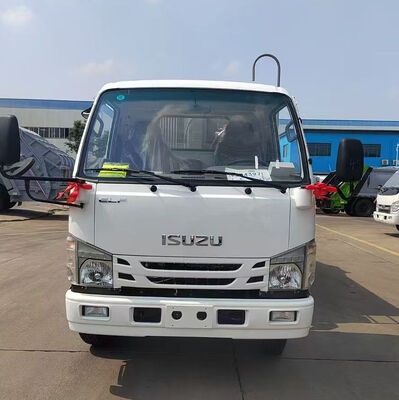

front elevation
Technical Specifications
(Custom configurations available upon request.)
Model | CLW5070ZYSQ6 | Product Name | Compressed Garbage Truck |
Gross Mass (Kg) | 7300 | Overall Dimensions (mm) | 6650×2050×2750 |
Curb Mass (Kg) | 5300 | Wheelbase (mm) | 3360 |
Trash tank capacity (m³) | 6 | Tire Specification | 7.00R16LT |
Number of Tires | 6 | Engine Model | 4KH1CN6LB |
Fuel consumption(L/100Km) | 16.12 | Max speed(km/h) | 95 |
Power (Kw) | 88 | Horsepower(PS) | 119 |
Decomposition Diagram of Compressed Garbage Truck
1.Packer Lock Hook: The lock hook device has a firm structure and is adjustable, ensuring a tighter gap between the packer and the box.
2.Back Pressure Valve: Two-way compression increases the compression ratio of loaded garbage and improves the garbage load capacity.
3.Hydraulic Oil Tank: It has a triple filtration function, stores the oil needed for the system circulation, and dissipates the heat generated when the system is working.
4.Multi-way Valve: Adopts Jiangsu Zhongmei/Weisenbole hydraulic valve, with high precision and stable performance.
5.Hydraulic Oil Pipe: Uses high-precision high-pressure oil pipe, which is resistant to high pressure and corrosion, and has a long service life.
6.Hydraulic Cylinder: Uses well-known Boli/Feida brand cylinders.
7.Proximity Switch: Uses a photoelectric induction switch to switch actions, reduce cylinder pressure, and make the electronic control system more stable.
8.Integral Nylon Slider: Integral nylon slider, strong and wear-resistant, with self-lubricating function, and long service life.
9.Rear Lighting: Convenient for operation at night or when the light is poor.
10.Sewage Tank (at the rear): Installed at the bottom of the packer to prevent secondary pollution during transportation; the sewage tank is made of galvanized material, which is corrosion-resistant and durable.
11.Rear Tipping Mechanism: New roller structure, low resistance, smoother operation, and can hang 120L, 240L or 660L trash cans at the same time.
12.Remote Control Device: Remotely control the loading and unloading of garbage, more intelligent and more humanized.
13.Electronic Control Device: Adopts Siemens PLC or CAN bus electronic control system, which is convenient to operate and simple to use.
14.Balance Valve: Ensure the synchronous action of the cylinder, prevent the oil pipe from bursting, and ensure the safe operation of the packer.
15.Arc-shaped Box: Adopts robotic automatic welding, the box structure is more stable, and the weld is beautiful without scraping ash.
16.Sewage Tank (on the side): Side-mounted large-capacity sewage tank, which can hold more sewage and has a cleaning port.
After Sales Service
Standard Warranty: 12 months or 30,000 km (whichever comes first).
Extended Warranty: Optional warranty up to 36 months.
Global Support: 24/7 technical support and spare parts availability.
Training: On-site or remote operation/maintenance training.
Company Profile
CHENGLI SPECIAL AUTOMOBILE CO., LTD
Chengli Special Purpose Vehicle Co., Ltd., located in the southern suburbs of Zengdu District, Suizhou City, Hubei Province, was established in September 2004 with registered capital of 100 million yuan. The company currently has total assets of 1.645 billion yuan, occupies 610 mu (approximately 16 acres), and employs 1,786 people. Its main business scope includes the research and development, manufacturing, sales, and service of complete vehicles, special-purpose vehicles, new energy vehicles, and emergency support vehicles.
The company has obtained ISO9001 quality management, ISO 14001 environmental management, and ISO45001 occupational health and safety management system certifications. It also holds various management certifications, including five-star after-sales service, 3C compulsory certification, automotive energy conservation and environmental protection certification, automotive tax exemption certification, American Society of Mechanical Engineers (ASME) certification, and EU Agreement ADR. The company holds production qualifications for special-purpose vehicles, complete vehicles, new energy vehicles, truck-mounted cranes, mobile cranes, and fire trucks.
The company's "Chengliwei" branded products are popular both domestically and internationally, with exports to over 50 countries and regions, including Nigeria, Ghana, Angola, Bolivia, Chile, Cambodia, and Myanmar.
Why Choose Us?
Other Products
1. The product has a hard core and strong adaptability
2. High cost-effectiveness, more cost-effective procurement
3. Flexible customization and fast response speed
4. Complete after-sales service, worry free throughout the entire process
Sprinkler truck
Sewage suction truck
Road sweeper
Tank truck
Refrigerated truck
Crane
FAQ
Q: What is the order lead time?
A: Standard models ship within 15-30 days; customized models ship within 30-45 days.
Q: Do you provide overseas after-sales service?
A: Yes, we have partner service centers in major regions.
Q: Can I request a custom order?
A: Of course! We also offer custom accessories.
Q: What export documents do you provide?
A: Complete export packaging (commercial invoice, packing list, bill of lading, certificate of origin, etc.).
Q: How do I place an order?
A: Contact us by email or phone for a quote, then confirm with a purchase order.
