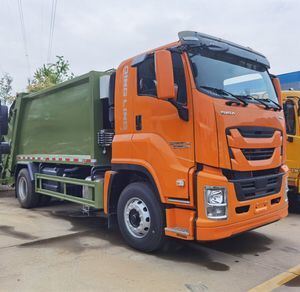

After Being Exported to Isuzu, It Will Be Sold in Compression Garbage Truck, Compression Garbage Truck.

After Being Exported to Isuzu, It Will Be Sold in Compression Garbage Truck, Compression Garbage Truck.

Specifications

ModelCLW5180ZYS6
Volume10001-15000L
ChassisEuro VI
PriceUS $25,000-35,000
WhatsApp+86 13597839022
AddressXingguang 1st Road, Suizhou City, Hubei Province
DeliveryFactory pickup, door-to-door delivery, overseas shipping
ColorCustom paint and branding available

Free Quote WhatsApp

Product Details & Configuration

The compressed garbage truck is composed of a sealed garbage box, a hydraulic system and an operating system. The whole vehicle is fully sealed. The sewage in the process of self-compression, self-dumping and compression all enters the sewage compartment, which completely solves the problem of garbage transportation.Secondary pollutionThe problem avoids inconvenience to people. The key parts are imported parts, which have the advantages of high pressure, good sealing, convenient operation, safety and so on. It can be equipped with a variety of rear-hanging bucket flipping mechanism or garbage bucket flipping mechanism.

[Main Technical Parameters]
Product trademark	Cheng Liwei brand	Announcement batch
Product name	CLW5070ZYSQ6 type compressed garbage truck	Product number
Total mass (Kg)	7300	Tank volume (m3)	6
Rated Load Mass (Kg)		Dimensions (mm)	6650×2050×2750
Prepared mass (Kg)	5300	Cargo compartment size (mm)	××

The number of passengers in the cab (persons)	2	Load mass utilization coefficient
Approach angle/departure angle (°)	15/24	Front suspension/rear suspension (mm)	.1015/2045,1015/1965
Number of axes	2	Wheelbase (mm)	3360
Shaft load (Kg)	2580/4720.	Maximum speed (Km/h)	95
Other
[Technical parameters of chassis]
.Chassis model	QL1070BUHACY	Name of the chassis	Cargo vehicle chassis (Class II)
Trademark name	Isuzu brand	Manufacturing enterprise	Automobile Co., Ltd.
Dimensions (mm)	5900×1880×2200	Number of tires	6
Approach angle/departure angle (°)	16/24	Tire specifications	.7.00R16LT 14PR, 7.00-16LT 14PR
The number of steel plate springs	8/6 plus 5	Front wheelbase (mm)	1504
Types of fuel	Diesel oil	Rear wheelbase (mm)	1425
Emission standards	GB17691-2018 Country VI
Engine model	Engine manufacturers	Discharge (ml)	.Power (Kw)
4KH1CN6LB 4KH1N6MD. 4KB1-TCG60.	Isuzu (China) Engine Co., Ltd. Isuzu (China) Engine Co., Ltd. Isuzu (China) Engine Co., Ltd.	2999 2999 2499	88 103 96

Order	.Name	Specifications and models
1	Chassis name/model	ISUZU Series
2	Wheelbase (mm)	3360
Three	The volume of the box is m3	7
4	Box thickness mm	Wugang Q345 low-alloy manganese steel (side four and bottom five) flipping mechanism scraper, arc bottom plate, slide adopts Q710 high-strength plate
5	Sewage tank	There is a sewage sink on the front of the large box, and an integrated sewage tank at the bottom of the filler.
6	Box shape	Arc, the side plate is the whole plate for one-time molding, no welding
7	Hydraulic cylinder	Hypris
8	Oil pump	Changyuan
9	Multi-way valve	Zhongmei, Yangzhou, Jiangsu Province
Ten	Hydraulic oil pipe	Bonway hydraulic oil pipe (high-density double-layer 24Mpa)
11	System rated pressure	18 MPa
12	Compression ratio	≥0.85
13	Consolidation method	Two-way peristaltic compression
14	Control system	German Siemens PLC and German photoelectric sensors
15	Loading single cycle time	≤24 s
16	.Time to dump garbage	≤35 s
17	Control method	All-in-one independent operation of the handsplet (standard remote control)
18	Key component structure	Reinforced with cast steel parts
19	Shovel and skateboard slider	Highly wear-resistant nylon
20	The design of the whole vehicle	Use SW three-dimensional software to simulate
21	Back-hanging bucket method	.Standard configuration: rear-turning barrel type (can hang the national standard 240 plastic barrel or iron barrel or triangle bucket) / optional: fully sealed bucket, swing arm flip
22	Body color/text	Body color and text painting can be customized according to customer requirements.
23	Attachment	Profile light, side light, work light

Product highlights:

1.Larger loading capacity: the same volume of the box increases by 5% per square capacity compared with the previous generation (more than 7 barrels of 240L trash cans).

2.Fault-prone position: The force position of the scraper skateboard is generally prone to deformation, resulting in unstable work. The new generation of products developed by our company has innovated in terms of materials and design, making the performance of the whole vehicle more stable and improving the service life.

3.Working time: The loading time of the new generation of compressed garbage trucks produced by our company is within 25 seconds in the idle state, and the loading time is the longest time used by the vehicle, so it is economical fuel, reduces costs, and improves work efficiency.

4.Wear parts: The scraper is the largest force on the vehicle, and the slide is the most worn. Our company's slide adopts a high-strength Q710 of more than 8mm. The middle of the scraper is strengthened separately, which has greater bearing capacity and stronger wear resistance, greatly increasing the service life.

5.Oil pump: Oil pump is the main component of the compression vehicle. Our company's new generation oil pump is customized for oil pump factory, with stable performance and extremely low failure rate.

6. Noise: The new generation of compression vehicles has added a photoelectric induction device, which can control the travel distance of each action, reduce the metal sound generated during collision and scraping, and effectively improve noise pollution.

Chengli Special Purpose Vehicle Co., Ltd., located in the southern suburbs of Zengdu District, Suizhou City, Hubei Province, was established in September 2004 with registered capital of 100 million yuan. The company currently has total assets of 1.645 billion yuan, occupies 610 mu (approximately 16 acres), and employs 1,786 people. Its main business scope includes the research and development, manufacturing, sales, and service of complete vehicles, special-purpose vehicles, new energy vehicles, and emergency support vehicles.

The company has obtained ISO9001 quality management, ISO 14001 environmental management, and ISO45001 occupational health and safety management system certifications. It also holds various management certifications, including five-star after-sales service, 3C compulsory certification, automotive energy conservation and environmental protection certification, automotive tax exemption certification, American Society of Mechanical Engineers (ASME) certification, and EU Agreement ADR. The company holds production qualifications for special-purpose vehicles, complete vehicles, new energy vehicles, truck-mounted cranes, mobile cranes, and fire trucks.

The company's "Chengliwei" branded products are popular both domestically and internationally, with exports to over 50 countries and regions, including Nigeria, Ghana, Angola, Bolivia, Chile, Cambodia, and Myanmar.

After more than 20 years of rapid development, Chengli Special Purpose Vehicle Co., Ltd. now occupies over 3,000 mu (approximately 166 acres) of land, with a construction area of 1.2 million square meters. It possesses over 5,000 units of various large-scale production equipment, 16 subsidiaries, over 40 member factories, and over 100 specialized factories. With four major production bases located in the southern suburbs of Zengdu District, Suizhou City, Zengdu Economic Development Zone, Huangpi District, Wuhan City, and Dongjin New District, Xiangyang City, it has an annual production capacity of 50,000 vehicle chassis, 100,000 special-purpose vehicles, 10,000 new energy vehicles, and 20,000 units of emergency equipment.

The company has obtained national industrial product production licenses, ISO 9001 quality management, ISO 14001 environmental management, ISO 45001 occupational health and safety management system certifications, after-sales service certification, 3C compulsory certification, automotive energy conservation and environmental protection certification, and automobile tax exemption certification. The company is qualified to produce special-purpose vehicles, truck-mounted cranes, mobile cranes, fire trucks, new energy vehicles, complete vehicles, and buses.

Hot selling car

1. Q: How about the quality of trucks of your factory?
A: Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.

2. Q: How many years of your company's service, especially after-sale service?
A:Chengli Special Purpose Vehicle Co., Ltd. (referred to as "Chengli Special Purpose Vehicle") is a wholly-owned subsidiary of Chengli Automobile Group Co., Ltd. We have been working in this field for nearly 20 years and have strong production and distribution capabilities. We can produce your products within 15 working days. We provide one-year after-sales service.

3. Q: Is there any advantages of your price?
A: CLW Group is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.

4. Price term: FOB, CIF.

5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.

6.Delivery time: 25 working days after payment is received.
