4cmb Compression Garbage Truck for Waste Management and Urban Sanitation Solutions
Specifications
- ModelCLW5040ZYS6
- Volume1000-3000L
- ChassisEuro VI
- PriceUS $9,800-11,500 /
- WhatsApp+86 13597839022
- AddressXingguang 1st Road, Suizhou City, Hubei Province
- DeliveryFactory pickup, door-to-door delivery, overseas shipping
- ColorCustom paint and branding available
Product Details & Configuration

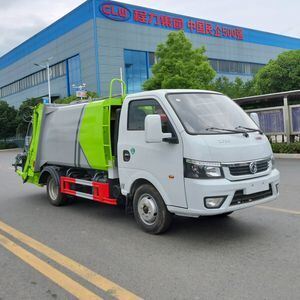

High-performance compression garbage truck
The compressed garbage truck consists of a sealed garbage bin, a hydraulic system, and an operating system.
The whole vehicle is fully sealed,All the sewage in the process of self-compression, self-dumping and compression enters the sewage compartment, which completely solves the problem during the garbage transportation processSecondary pollutionThe problem avoids inconvenience to people. The key components are imported parts, which have the advantages of high pressure, good sealing, convenient operation, safety, etc. A variety of rear bucket flip mechanisms or garbage bin flip mechanisms are available.
| [Technical parameters of the whole vehicle] | |||
| Product name | Compressed garbage truck | ||
| Total mass(Kg) | 4495 | The volume of the box(M3) | 4 |
| Quality of preparation(Kg) | 3800 | External size(Mm) | 5995x1960×2000 |
| The number of passengers in the cab(People) | 2 | ||
| Approach angle/Departure angle (°) | 12/20 | Front suspension/Rear suspension (mm) | 1190/1760 |
| Axis load(Kg) | 1650/2845 | The maximum speed(Km/h) | 110 |
| [Chassis technologyParameters] | |||
| Chassis model | EQ1045SJ16DC. | Name of the chassis | Cargo vehicle chassis |
| Trademark name | Dongfeng brand | Manufacturing enterprise | Dongfeng Automobile Co., Ltd. |
| Number of axes | 2 | Number of tires | 6 |
| Wheelbase (mm) | 2800 | ||
| Tire specifications | 185R15LT 8PR,6.00R15 10PR,6.00R15LT 10PR | ||
| The number of steel plate springs | 3/5. | Front wheelbase(Mm) | 1369,1387 |
| Types of fuel | Diesel oil | .Rear wheelbase(Mm) | 1242,1342 |
| Emissions based on standards | GB17691-2018 Country VI | ||
| Engine model | Engine manufacturers | Discharge(Ml) | Power(Kw) |
| Q23-95E60. | Anhui Quanchai Power Co., Ltd. | 2300 | 70 |
1 Filler Locking Hook: The locking hook device has a firm structure and is adjustable to ensure a tighter gap between the filler and the box.
2 Back Pressure Valve: Two-way compression increases the compression ratio of loaded garbage and improves the loading capacity of garbage.
3 Hydraulic Oil Tank: It has a triple filtration function, stores the oil required for the system cycle, and dissipates the heat generated during the operation of the system.
4 Multi-way Valve: Using Jiangsu Zhongmei/Weisenbole hydraulic valve, with high precision and stable performance.
5 Hydraulic Oil Pipe: Using high-precision high-pressure oil pipe, resistant to high pressure and corrosion, with a long service life.
6 Hydraulic Cylinder: Using well-known Boli/Feida brand cylinders.
7 Proximity Switch: The photoelectric induction switch is used to switch actions, reduce cylinder pressure, and make the electronic control system more stable.
8 Integral Nylon Slider: The integral nylon slider is strong and wear-resistant, with self-lubricating function and a long service cycle.
9 Tail Lighting: Convenient for operation at night or when the light is poor.
10 Sewage Tank: Installed at the bottom of the filler to prevent secondary pollution during transportation. The cover of the sewage tank is made of galvanized material, which is corrosion-resistant and durable.
11 Rear Turning Mechanism: The new roller structure has small resistance and smoother operation, and can hang 120L, 240L or 660L trash cans at the same time.
12 Remote Control Device: Remotely control the loading and unloading of garbage, which is more intelligent and humanized.
13 Electronic Control Device: Using Siemens PLC or CAN bus electronic control system, easy to operate and simple to use.
14 Balance Valve: Ensure the synchronous action of the oil cylinder, prevent the oil pipe from bursting, and ensure the safe operation of the filler.
15 Arc-shaped Box: Using robot automatic welding, the box structure is more stable, and the weld is beautiful without scraping ash.
16 Sewage Tank: A large-capacity sewage tank is hung on the side to hold more sewage, with a cleaning port.
Chengli Special Purpose Vehicle Co., Ltd., located in the southern suburbs of Zengdu District, Suizhou City, Hubei Province, was established in September 2004 with registered capital of 100 million yuan. The company currently has total assets of 1.645 billion yuan, occupies 610 mu (approximately 16 acres), and employs 1,786 people. Its main business scope includes the research and development, manufacturing, sales, and service of complete vehicles, special-purpose vehicles, new energy vehicles, and emergency support vehicles.
The company has obtained ISO9001 quality management, ISO 14001 environmental management, and ISO45001 occupational health and safety management system certifications. It also holds various management certifications, including five-star after-sales service, 3C compulsory certification, automotive energy conservation and environmental protection certification, automotive tax exemption certification, American Society of Mechanical Engineers (ASME) certification, and EU Agreement ADR. The company holds production qualifications for special-purpose vehicles, complete vehicles, new energy vehicles, truck-mounted cranes, mobile cranes, and fire trucks.
The company's "Chengliwei" branded products are popular both domestically and internationally, with exports to over 50 countries and regions, including Nigeria, Ghana, Angola, Bolivia, Chile, Cambodia, and Myanmar.
After more than 20 years of rapid development, Chengli Special Purpose Vehicle Co., Ltd. now occupies over 3,000 mu (approximately 166 acres) of land, with a construction area of 1.2 million square meters. It possesses over 5,000 units of various large-scale production equipment, 16 subsidiaries, over 40 member factories, and over 100 specialized factories. With four major production bases located in the southern suburbs of Zengdu District, Suizhou City, Zengdu Economic Development Zone, Huangpi District, Wuhan City, and Dongjin New District, Xiangyang City, it has an annual production capacity of 50,000 vehicle chassis, 100,000 special-purpose vehicles, 10,000 new energy vehicles, and 20,000 units of emergency equipment.
The company has obtained national industrial product production licenses, ISO 9001 quality management, ISO 14001 environmental management, ISO 45001 occupational health and safety management system certifications, after-sales service certification, 3C compulsory certification, automotive energy conservation and environmental protection certification, and automobile tax exemption certification. The company is qualified to produce special-purpose vehicles, truck-mounted cranes, mobile cranes, fire trucks, new energy vehicles, complete vehicles, and buses.
Q: What is the order lead time?
A: Standard models ship within 15-30 days; customized models ship within 30-45 days.
Q: Do you provide overseas after-sales service?
A: Yes, we have partner service centers in major regions.
Q: Can I request a custom order?
A: Of course! We also offer custom accessories.
Q: What export documents do you provide?
A: Complete export packaging (commercial invoice, packing list, bill of lading, certificate of origin, etc.).
Q: How do I place an order?
A: Contact us by email or phone for a quote, then confirm with a purchase order.
