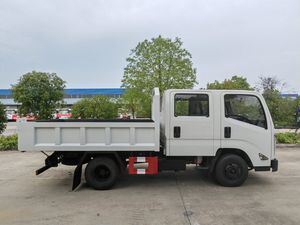

Compact Double Row Dump Truck for Efficient 3-Ton Slag Transport

Free Quote WhatsApp

Product Details & Configuration

Jiangling brand JX1040TSGA26 type truck

[Vehicle technical parameters]
Product trademark	Jiang Ling card	Announcement batch	385 (Extended)
product name	lorry	product model	JX1040TSGA26
gross mass (Kg)	4490	Tank volume (m3)
Rated load mass (Kg)	1600	outline dimension (mm)	5990×2180×2395
curb weight (Kg)	2565	Goods Chamber Size (mm)	3200×2100×440
Number of passengers (person)	2+3	Maximum saddle load mass (Kg)
Approach angle / departure angle of (°)	18/15	Front suspension / rear suspension (mm)	1115/1515
[Chassis technical parameters]
Chassis model	JX1040TSGA26	Chassis name	truck chassis
brand name	Jiang Ling card	manufacturing enterprise	Jiangling Automobile Co., Ltd
number of axles	2	Number of tires	6
wheel base (mm)	3360
tyre size	6.50R16LT 10PR,7.00R16LT 8PR,7.00R16LT 10PR
Number of steel plate spring sheets	3/3+2,3/3+3,3/4+3,3/5+2,3/5+3,3/8+2,3/8+3,1/1+1,2/1+3,3/1+3,4/1+3,3/3,2/3,3/3+4	front gauge (mm)	1460,1475,1500
Fuel types	diesel oil	rear track (mm)	1475
Emission basis standard	The GB17691-2018 countries
engine type	Engine production enterprise	displacement (ml)	power (Kw)
JX493ZLQ6F JX4D25B6H	Jiangling Automobile Co., Ltd Jiangling Automobile Co., Ltd	2499 2478	95 107
