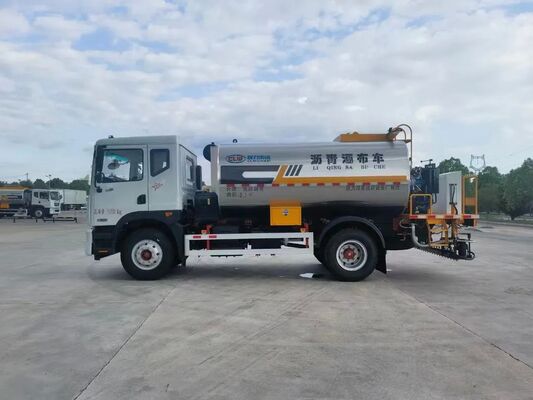

Dongfeng Heavy-Duty Oil Tanker and Asphalt Transport Vehicle
Specifications
- ModelCLW
- VolumeAsphalt Distributor
- ChassisCement Concrete Pavement
- PriceUS $48,888-58,888
- WhatsApp+86 13597839022
- AddressXingguang 1st Road, Suizhou City, Hubei Province
- DeliveryFactory pickup, door-to-door delivery, overseas shipping
- ColorCustom paint and branding available
Product Details & Configuration
Dongfeng D9 intelligent asphalt sprinkler car
Chassis configuration (4500 wheelbase)
Upper configuration (partial)
Chassis configuration (4500 wheelbase)
| order number | name | Model and specification | configure |
| 1 | Chassis model | EQ1165LJ9CDE | √ |
| 2 | Chassis name | The Dongfeng D9 Dorica | √ |
| 3 | wheel base | 4500mm | √ |
| 4 | number of axles | 2 | √ |
| 5 | engine type | YCS04200-68, B6.2NS6B230 Two options are available | √ |
| 6 | Engine horsepower | Yuchai 200 horsepower, 230 horsepower two optional | √ |
| 7 | engine displacement | 4000ml,6200ml | √ |
| 8 | tyre size | 10.00R20 Steel wire tire | √ |
| 9 | Number of tires | 6 + 1 (A) | √ |
| 10 | Fuel types | diesel oil | √ |
| 11 | fuel tank capacity | 180(L) | √ |
| 12 | gear-box | Shaanxi tooth 8-gear gearbox | √ |
| 13 | Approximate number | 2,3 (A) | √ |
| 14 | maximum speed | 105(km/h) | √ |
| 15 | Central control lock | Dongfeng original factory | √ |
| 16 | Electric glass | Dongfeng original factory | √ |
| 17 | air-conditioning | Dongfeng original factory | √ |
| 18 | effluent standard | The GB17691-2018 countries | √ |
Upper configuration (partial)
| product name | asphalt distributor | Vehicle model | CL5180GLQ6LS |
| Announcement batch | 351 | Whether to be exempted | yes |
| Tank Volume (L) | 10000-11500 | gross mass (Kg) | 18000 |
| Rated load mass (Kg) | 8420 | curb weight (Kg) | 9450 |
| Tank material | Q235 high-quality carbon steel | insulating layer | rock wool |
| Tank surface | stainless steel | overall dimensions of a car (mm) | 8420*2500*3330 |
| screen | custom made | Heat conduction oil pump | RY40-25-160 |
| pistol | 6 m hose + spray gun | proportioner | CL-BLTS120.00 |
| speed sensor | GTS211B-N016 | temperature sensor | WZP-230 |
| Pneumatic butterfly valve | CLD6H3-16C | cut-off valve | PN16DN50 |
| gen | A 7 Kw gasoline generator | mode of operation | Operate in the cab |
| navar | PLC navar | The nozzle control mode | One control one |
| bitumen pump | QGB950 | Tail nozzle | 36 pneumatic asphalt nozzles |
| Asphalt pump flow | 950L/min | Asphalt sprinkling | 0.2-3.5L/square meter(Error: ± 2%) |
| Spray medium | Emulsified asphalt, hot asphalt | heat conduction oil | Cyclic heating with thermal conductive oil |
| Spread Width (m) | 4.5m (optional 6 m spray rod) | burner | G20 (optional dual-burner) |
| area calculation | Sprinb area = amount of tank volume | ||
| Cleaning method | With a pneumatic cleaning or diesel cleaning | ||
