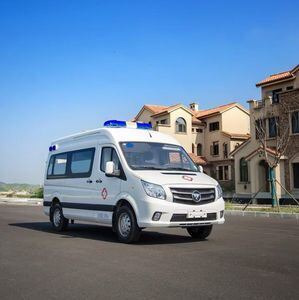

New Ambulance Car Negative Pressure Ambulance for Infectious Patient Emergency Vehicle
Specifications
- ModelCLW
- VolumeAmbulance
- ChassisManual
- PriceUS $15,000-69,100
- WhatsApp+86 13597839022
- AddressXingguang 1st Road, Suizhou City, Hubei Province
- DeliveryFactory pickup, door-to-door delivery, overseas shipping
- ColorCustom paint and branding available
Product Details & Configuration
New Ambulance Car Negative Pressure Ambulance for Infectious Patient Emergency Vehicle
one. Vehicle parameters and configuration
| order number | name | configure |
| Vehicle technical parameters | ||
| 1 | Vehicle size (mm): | Long: 5495 Wide: 2000,2055 High: 2600,2500 |
| 2 | wheel base (mm): | 3350 |
| 3 | Total vehicle full load mass (kg): | 3550 |
| 4 | Vehicle trim mass (kg): | 2480,2350,2560 |
| 5 | suspended system: | McPherson type independent suspension |
| 6 | Fuel type: | diesel oil |
| 8 | engine type: | 4F20TC3 |
| 9 | displacement (L): | 1968 |
| 10 | Power / HP: (kw) / (ps) | 110(kw)/149.6(ps) |
| 11 | effluent standard: | Six countries |
| 12 | Drive mode: | Front rear drive |
| 13 | transmission: | 6MT gearbox |
| 14 | Max. Safety Speed (km/h): | 130 |
| 15 | tyre size: | 215/75R16C,215/75R16LT |
| 16 | Rated passenger carrying capacity (including the driver): | 9,8,7 People |
| 17 | Tire pressure monitoring system, multi-function steering wheel, ABS + EBD, all-inclusive interior, single airbag, rearview mirror electric adjustment electric heating defrost, remote door lock, heating and cooling integrated electric air conditioning, cruise speed, 3 seats, EDR | |
- Interior configuration list
| Custody configuration | ||||
| component | project | quantity | explain | |
Exquisite appearance |
1 | Front top hidden type warning lamp | 1 | Standard long strip type alarm lamp |
| 2 | 1 group of blue flashing lights on each rear side | 4 | ||
| 3 | Tail door 1 set of blue flashing lights | 2 | ||
| 4 | 100W alarm and handle control and defense | 1 | ||
| 5 | Left black privacy membrane | 1 | ||
| 6 | White frosted film on the right side and the rear side | 1 | ||
| 7 | Body appearance | 1 | ||
| 8 | The 1,000 W pure-wave inverter system | 1 | ||
| 9 | Standardized low voltage wiring harness | 1 | Special standard wiring harness, professional embodiment | |
| 10 | Keytype switch | 1 | Million-level safety test, reliable safety | |
| 11 | Top LED lighting lamp | 4 | ||
| 12 | Angle-adjustable injection lamp | 2 | ||
| 13 | Round disinfection lamp | 1 | ||
| 14 | Light after getting on the bus | 1 | ||
| 15 | The 220V, with the power supply port | 3 | Automotive special application for European standard, national standard equipment power supply | |
| 16 | The 12V power supply port | 1 | ||
Comfortable configuration |
17 | High-power direct-discharge air conditioning | 1 | |
| 18 | High power warm wind | 1 | ||
| 19 | Top bidirectional ventilation fan | 1 | Small noise, water leakage, streamline design low wind resistance | |
| Medical class layout | 20 | The medical compartment is sealed off from the cockpit | 1 | |
| 21 | Interphone system | 1 | ||
| 22 | European style long strip push-pull window | 1 | Broadider view, before and after convenient observation | |
| 23 | Medical cabin modification is easy to clean the hard roof | 1 | Walker board, flame retardant, waterproof, easy to clean up | |
| 24 | Top long hanging cabinet | 1 | Walker board, flame retardant, waterproof, easy to clean up | |
| 25 | Long strip of medical equipment cabinet | 1 | Walker board, flame retardant, waterproof, easy to clean up | |
| 26 | Rear double 10L, oxygen tank | 1 | Walker board, flame retardant, waterproof, easy to clean up | |
| 27 | Partipartition reverse with storage soft bag seat | 1 | 2 Seat belt | |
| 28 | Forward independent forward doctor nursing seat | 1 | 3 Seat belt | |
| 29 | Double long strip seat on the right side | 1 | 2 Seat belt | |
| 30 | Medium door anti-collision soft bag | 1 | ||
| 31 | Tail door anti-collision soft bag | 1 | ||
| 32 | Moist-proof pad and wear-resistant medical floor | 1 | ||
| 33 | Safety reinforcement is embedded in the car | 1 | ||
oxygen breathing system |
34 | A 10L medical oxygen cylinder | 2 | |
| 35 | High flow pressure relief valve | 2 | ||
| 36 | Medical hyperbaric oxygen tube | 1 | Hidden installation | |
| 37 | National standard (British standard) oxygen port and hidden fixed bracket | 2 | ||
| 38 | Flow wet bottle | 1 | ||
Medical assistance |
39 | Automatically get on a stretcher | 1 | |
| 40 | Stainless steel stretcher guide rail pad plate | 1 | ||
| 41 | Stainless steel stretcher guide plate | 1 | Air spring, ten thousand times of support, no shaking and abnormal sound | |
Other auxiliary |
42 | The top is fixed with armrest | 1 | |
| 43 | Infusion rack | 1 | ||
| 44 | fire extinguisher | 1 | ||
| 45 | trash can | 1 | ||
